Pipe Stand

My glassworking teacher is a pipemaker. He asked me to make a stand for one of his pipes


Image Not Found

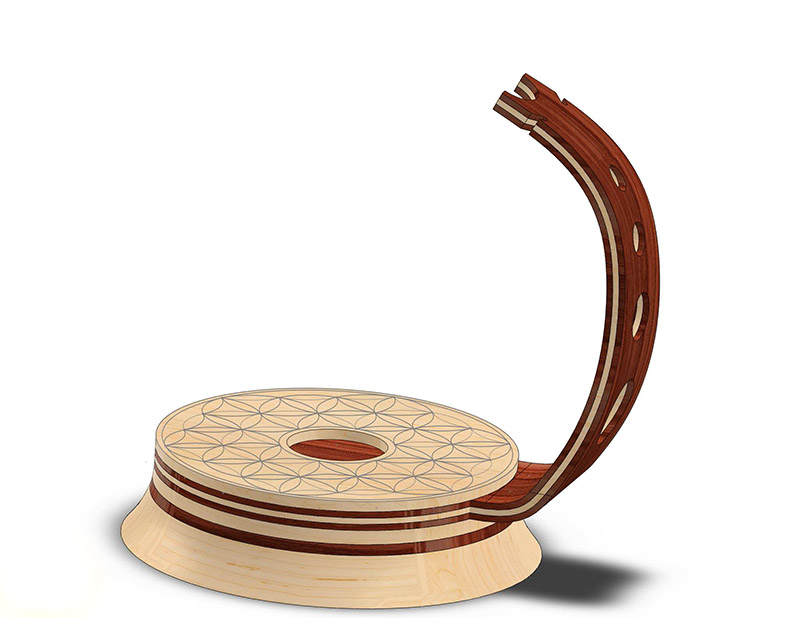

The CAD model

Image Not Found

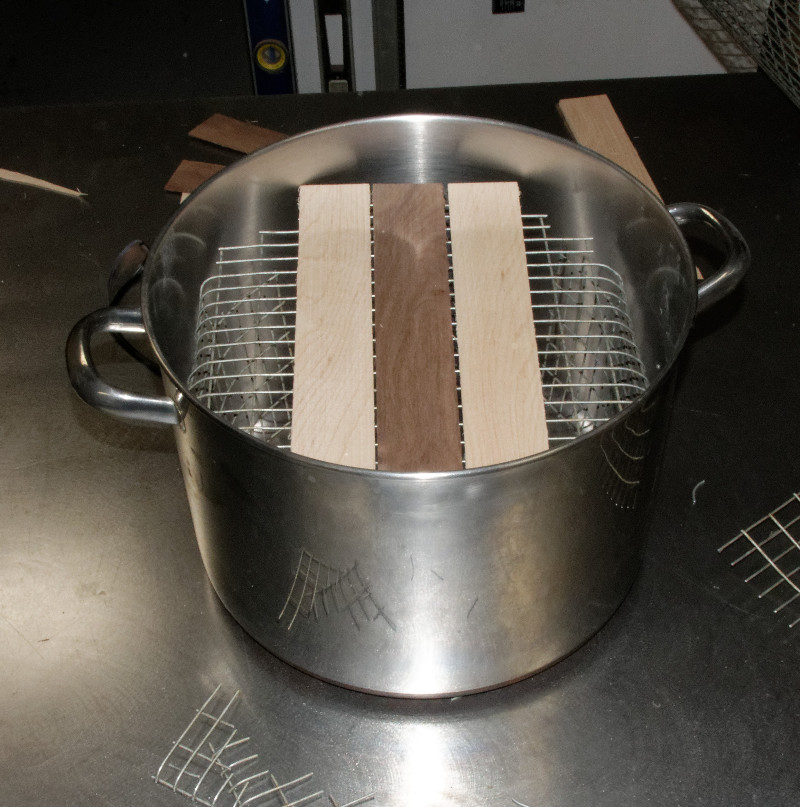

Slices cut with the band saw, sanded with the drum sander, then steamed

Image Not Found

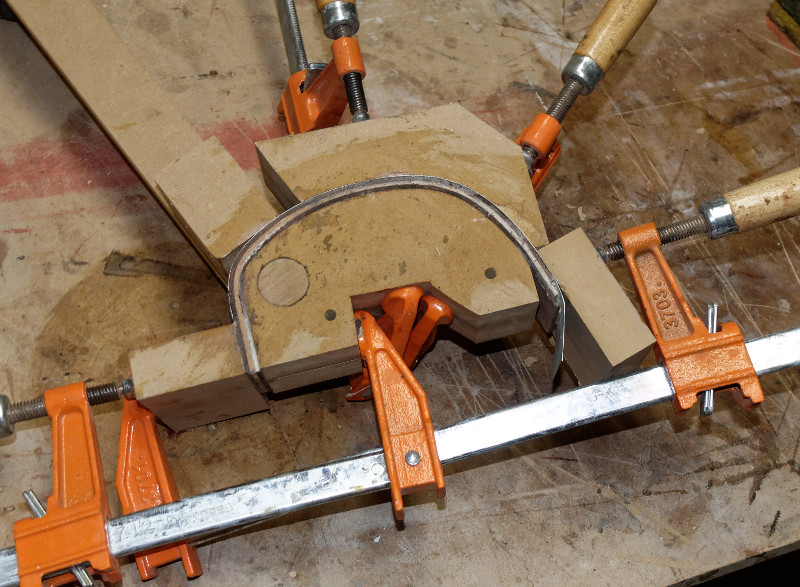

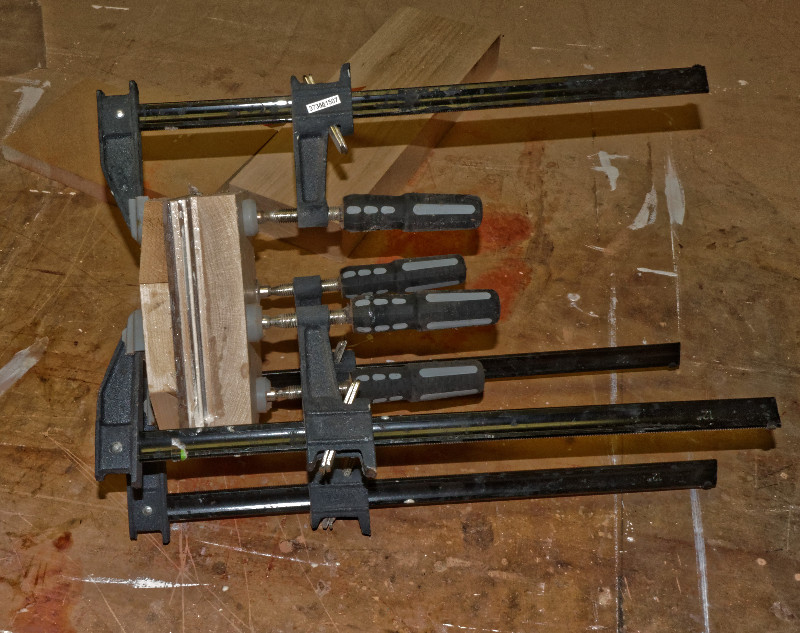

After steaming, the pieces are bent on the bending jig. A metal band on the outside prevents splitting

Image Not Found

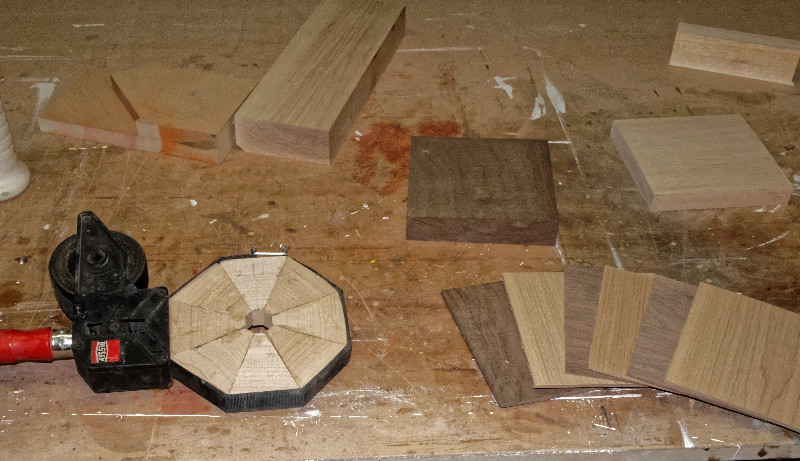

Base segments glued and various veneer pieces ready. All veneers cut with the band saw and sanded with the drum sander

Image Not Found

The base is made of several veneers. Here they are glued

Image Not Found

The base is turned on a faceplate

Image Not Found

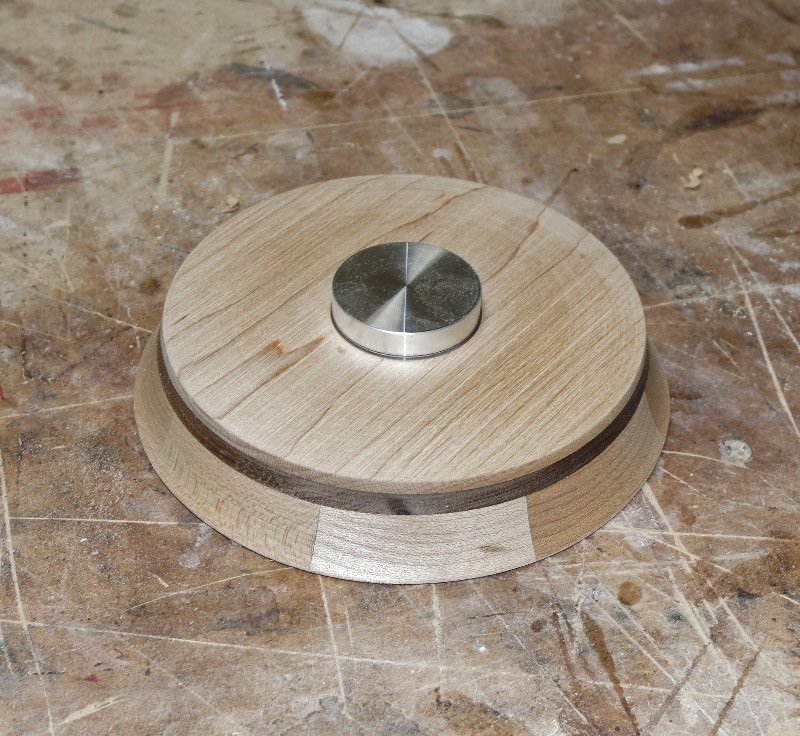

The finished base, with bearing

Image Not Found

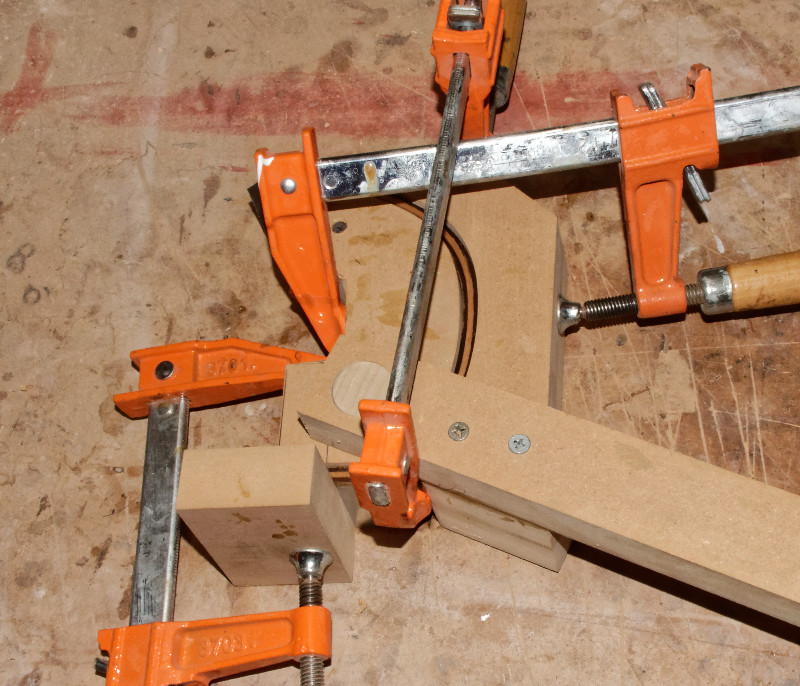

After bending, the pieces air dry for two days, then return to the clamping jig for gluing

Image Not Found

The gluing jig also holds the piece in the CNC for routing

Image Not Found

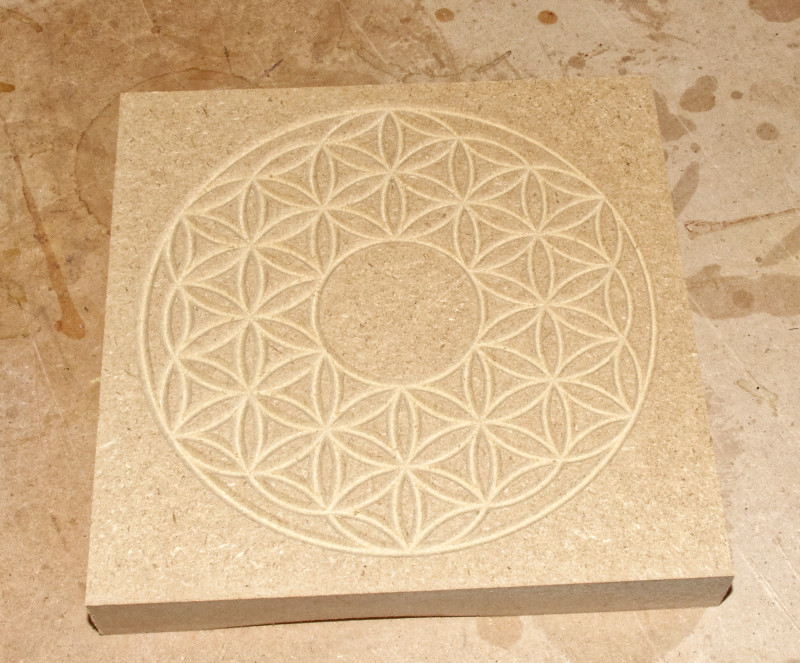

Test of pattern on MDF

Image Not Found

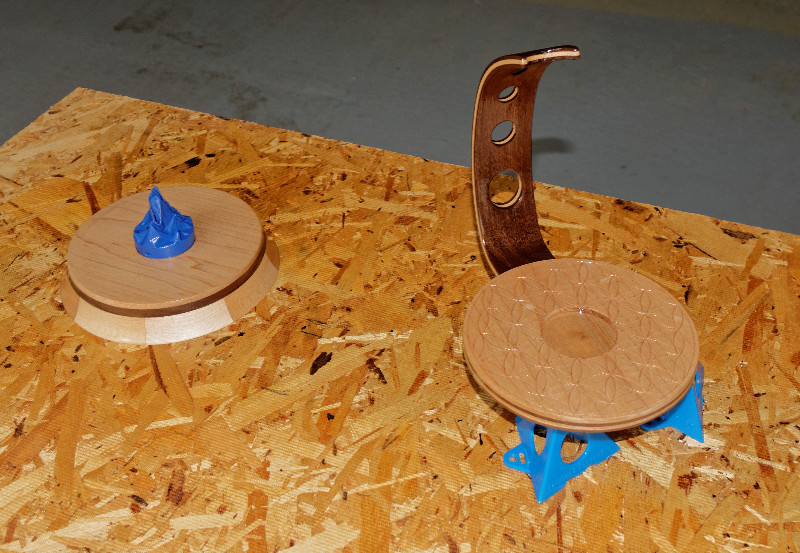

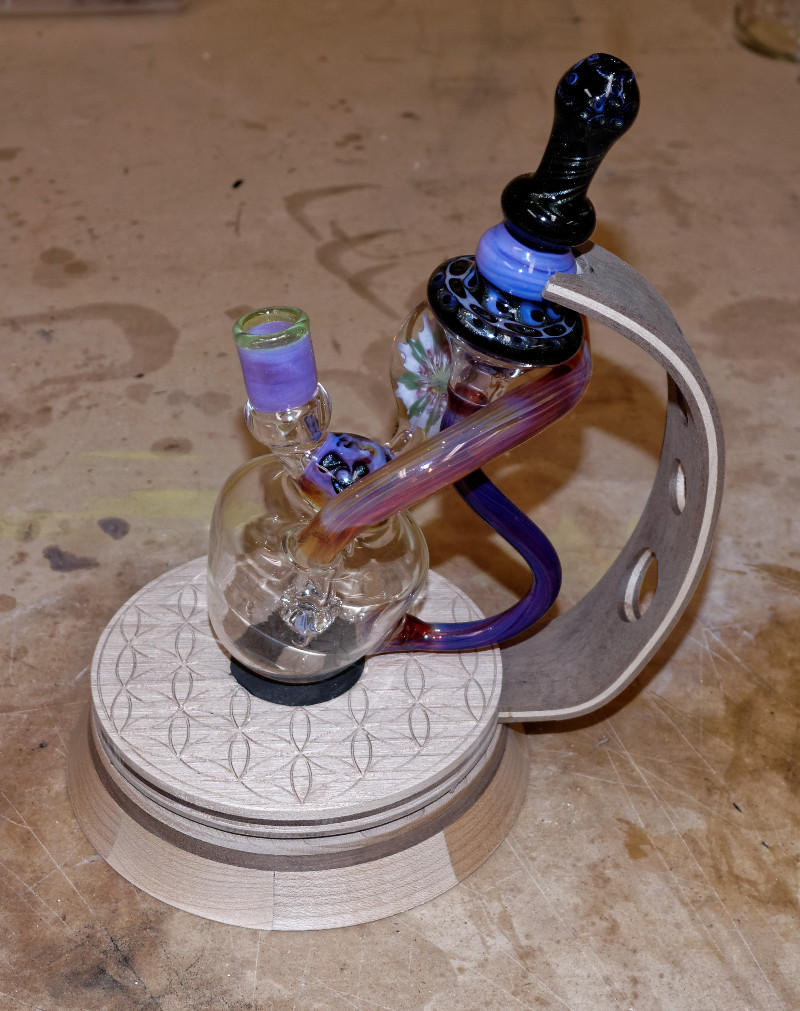

Test assembly to see if it all fits

Image Not Found

After spraying with catalyzed conversion varnish

Image Not Found

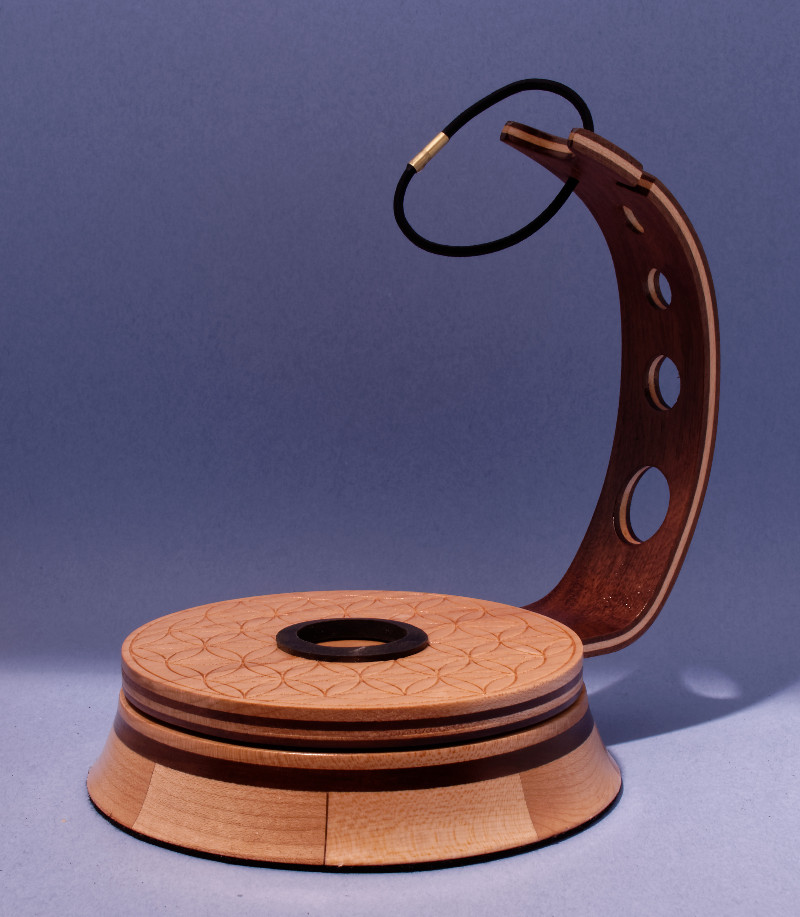

The finished stand

Image Not Found

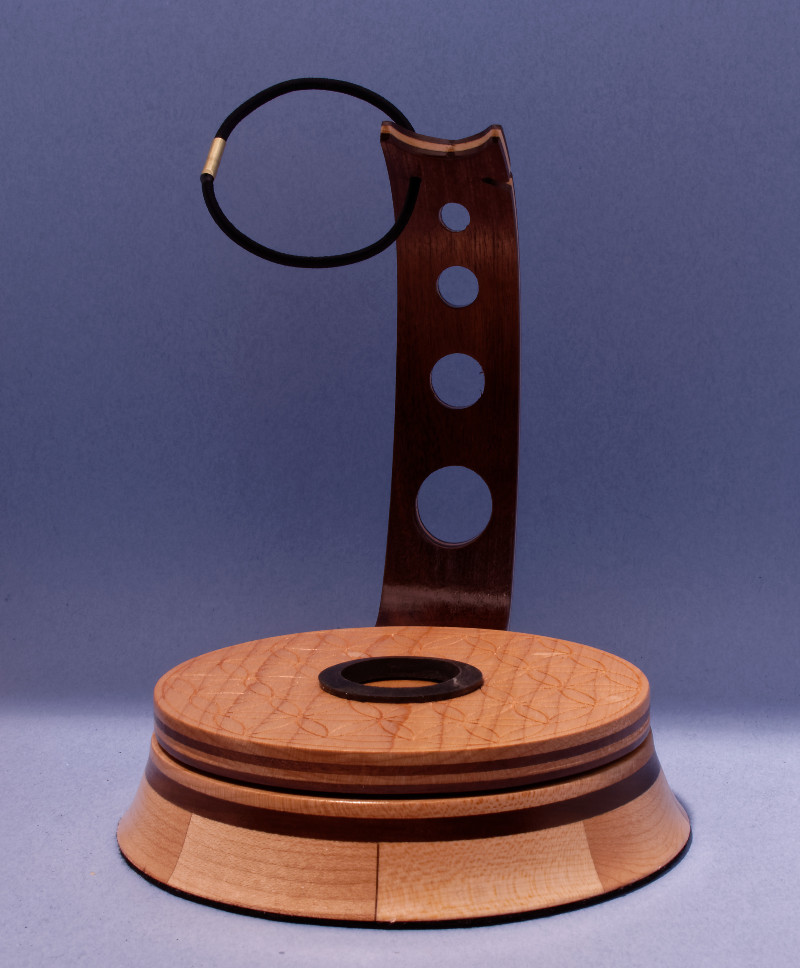

Another view

Image Not Found

Another view

Image Not Found

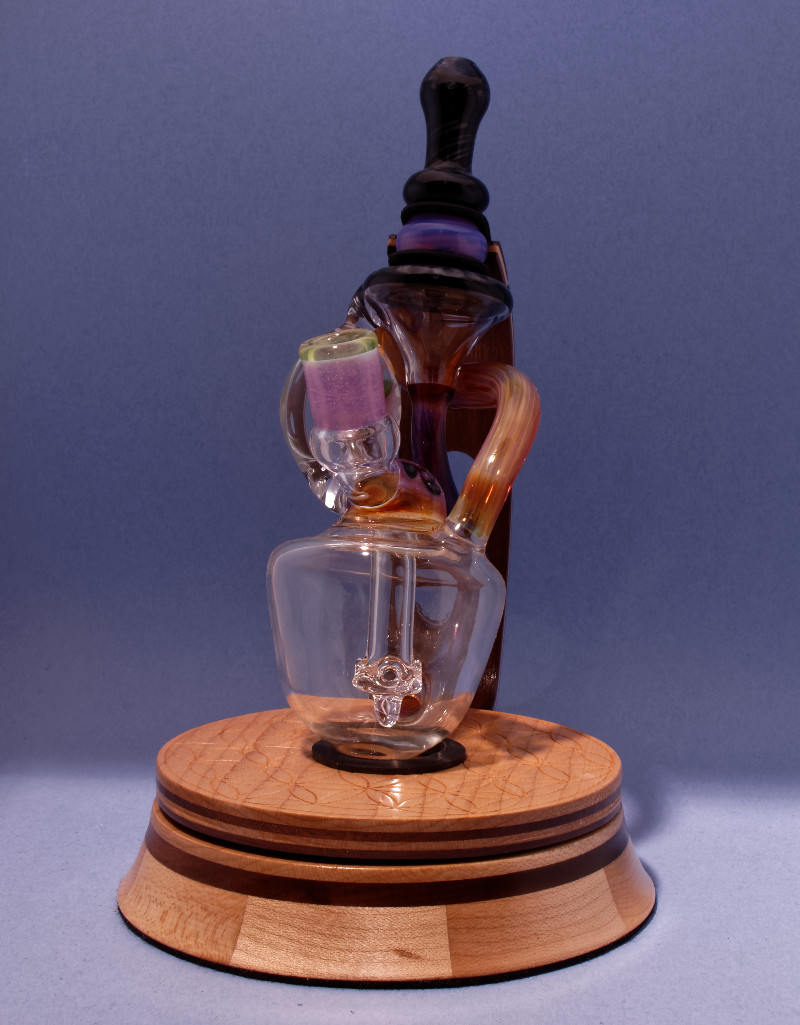

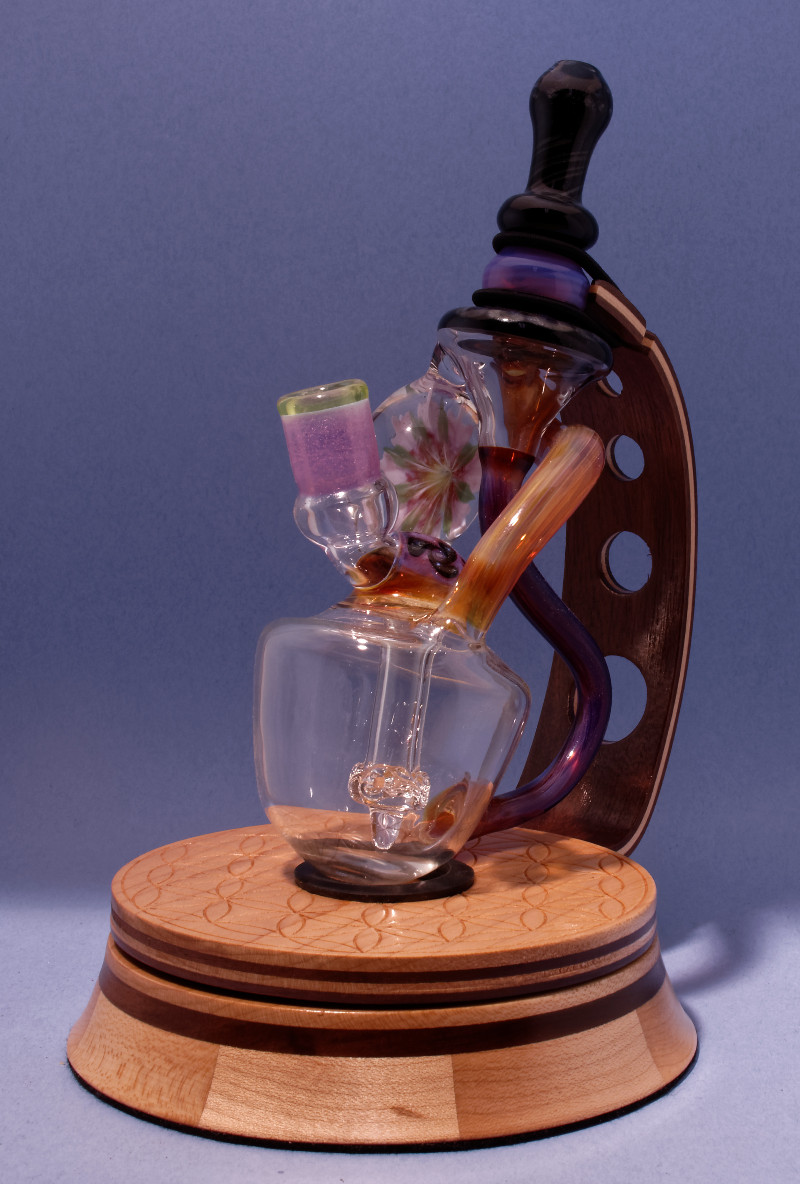

The pipe fits perfectly

Image Not Found

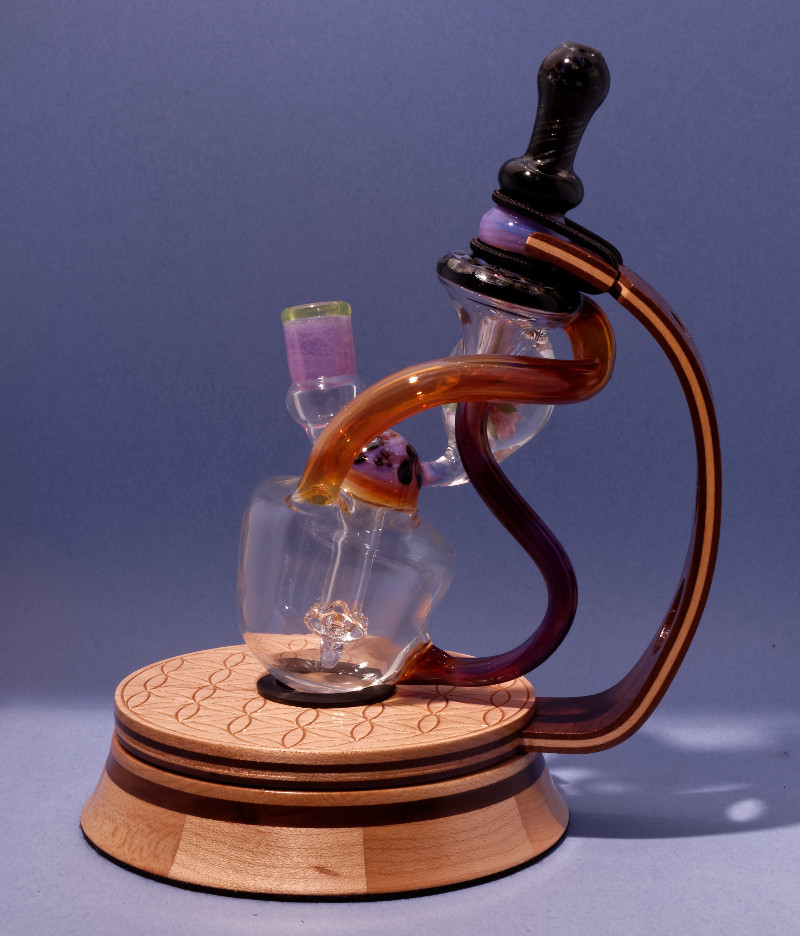

A rubber ring at the bottom and a mini-bungie at the top hold the pipe in place

Image Not Found

Another view

Image Not Found

Another view

Image Not Found

Another view
